PFMF850DLT-X, 250VAC/250VDC, 4A

PFMF850DLT-X, 250VAC/250VDC, 4A

PRODUCT SPECIFICATION

  • MAX VOLTAGE : 0-250VAC/0-250VDC
  • OPERATING FREQUENCY : DC-60HZ
  • AMBIENT TEMP.: : -40 TO 65C
  • HIPOT (L-G) : 1000VDC
  • PERFORMANCE : 100dB (3MHZ TO 20GHZ)
  • ADDITIONAL DETAILS:
  • 1. FOR INDOOR CONTROLLED ENVIRONMENTS
  • 2. ALL EMI SEAMS 100% WELDED E
  • 3. FOR DIFFERENT CONDUIT CUTOUT OR HOLE LOCATION, CONSULT FACTORY
DOWNLOAD SHEET

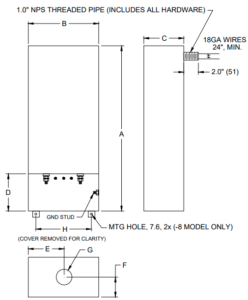

MODEL / PN # LINES AMPS TERMINALS DIMENSIONS (MM) WEIGHT LBS(KG)
LINE LOAD
  • A
  • B
  • C
  • D
  • E
  • F
  • G
  • H
PFMF850DLT-2 2 4 M5 18GA WIRES
  • 305
  • 89
  • 63.5
  • 76
  • 44.5
  • 32
  • 22
  • NA
 8 (3.6)
PFMF850DLT-4 4 4 M5 18GA WIRES
  • 305
  • 127
  • 63.5
  • 76
  • 63.5
  • 32
  • 22
  • NA
 11 (5)
PFMF850DLT-8 8 4 M5 18GA WIRES
  • 305
  • 254
  • 63.5
  • 89
  • 127
  • 32
  • 22
  • 203
 15 (6.8)
SPECIFICATIONS SUBJECT TO CHANGE
