PFMF342S, 4-LINE + GROUND, 16A-100A,
0-277VAC/0-480VAC
PRODUCT SPECIFICATION
- MAX VOLTAGE : 0-277/0-480VAC
- FREQUENCY : 50/60HZ
- OPERATING TEMP. : -40 TO 65C
- HIPOT (L-G) : 2200VDC (PRIOR TO INSTALLING DISCHARGE RESISTORS)
- DISCHARGE VOLT : (@277V): <30V IN 30S
- VOLTAGE. DROP : <2% MAX AT FULL RATED UNITY LOAD
- PERFORMANCE : 100dB (14KHZ TO 40GHZ)
- MANUFACTURED IN ACCORDANCE WITH THE FOLLOWING STANDARDS :
- MIL-STD-220
- MIL-F-15733
- LV DIRECTIVE
(FOR DIFFERENT CUTOUT SIZES OR LOCATIONS, CONSULT FACTORY)

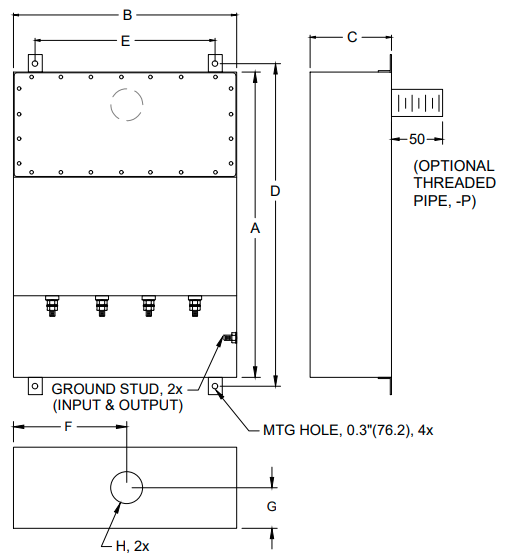

| MODEL / PN | AMPS | TERMINAL | DIMENSIONS (MM) | WEIGHT LBS(KG) | -P (PIPE SIZE) | |
|---|---|---|---|---|---|---|
| W/THREADED PIPE |
|
(OPTIONAL) | ||||
| PFMF342S-16 | PFMF342S-16-P | 16 | M6 |
|
95 (43) | 1.0″ NPS |
| PFMF342S-32 | PFMF342S-32-P | 32 | M6 |
|
95 (43) | 1.0″ NPS |
| PFMF342S-63 | PFMF342S-63-P | 63 | M10 |
|
156 (71) | 1.5″ NPS |
| PFMF342S-100 | PFMF342S-100-P | 100 | M10 |
|
196 (89) | 1.5″ NPS |
SPECIFICATIONS SUBJECT TO CHANGE
