FACILITY/SCIF POWER LINE FILTER, 3PH+NEUTRAL (4LINE) AND GROUND
Product Specification
- Operating Freq. : 50/60Hz
- Operating Voltage : 0-277VAC/0-480VAC
- Rated Current : 16A/Line
- Climatic Class : 25/100/21
- Rated Ambient : 60C
- Hipot Rating (L-G) : 2200VDC (Prior to Install of Discharge Resistors)

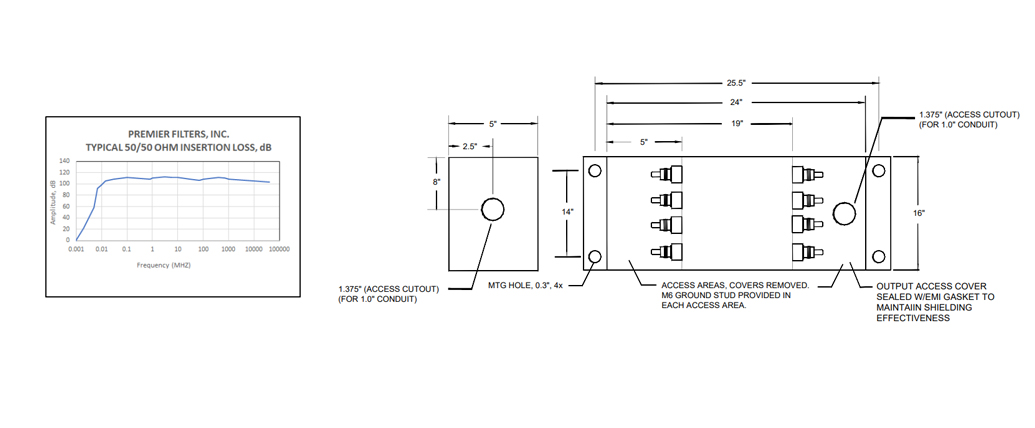

- Performance : 100dB (14KHZ TO 40GHZ)
- Terminals : M6 Studs
- Typical Weight, LBS (KG) : 85 (38.6)
- Discharge Voltage (@277V L-G) : <20V in 1 Minute
- Voltage Drop : 2% Max at Full Rated Unity Power Factor Load
- Leakage Current (277V/60HZ) : 10-15% Rated Current Manufactured in accordance with the following standards: UL1283, Low Voltage Directive, Mil-STD-220, Mil-F-15733
- Manufactured for wall mounting for indoor controlled environments. All seams are 100% sealed/ welded and output access compartment is sealed with EMI gasket to maintain 100dB performance. :
