Product Specification
- Max. Operating Voltage : 520VAC
- Ambient Temp : -40 to 70C
- Hipot Rating (L-G) : 1800VDC
- Stud Terminals : (10A-80A) M5 Stud
PART NUMBER / ORDERING
| MODEL | AMPS | WT (LBS) |
|---|---|---|
| PFM400S-10-100 | 10 | 2.9 |
| PFM400S-20-100 | 20 | 2.9 |
| PFM400S-30-100 | 30 | 6.2 |
| PFM400S-45-100 | 45 | 6.4 |
| PFM400S-60-100 | 60 | 10 |
| PFM400S-80-100 | 80 | 10 |
TYPICAL INSERTION LOSS (50/50ohm)
| FREQ MHZ) | 0.01 | 0.1 | 0.5 | 1.0 | 10 |
|---|---|---|---|---|---|
| CM, dB | 20 | 32 | 55 | 58 | 40 |
| DM, dB | 26 | 44 | 60 | 60 | 36 |

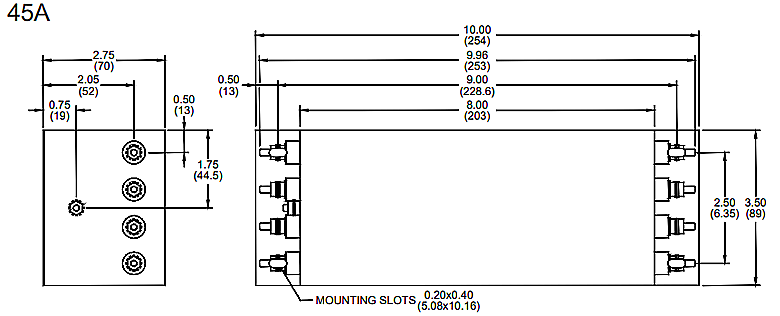

MECHANICAL DIMENSIONS
