Product Specification
- Operating Freq : 50/60Hz
- Usable Freq : DC-400Hz
- Max. Operating Voltage : 520VAC
- Ambient Temp : -25 to 50C
- Climatic Category : 25/110/21
- Hipot Rating (L-G) : 3500VDC
- Designed to Meet UL1283/CSA22.2/EN90939 Standards :

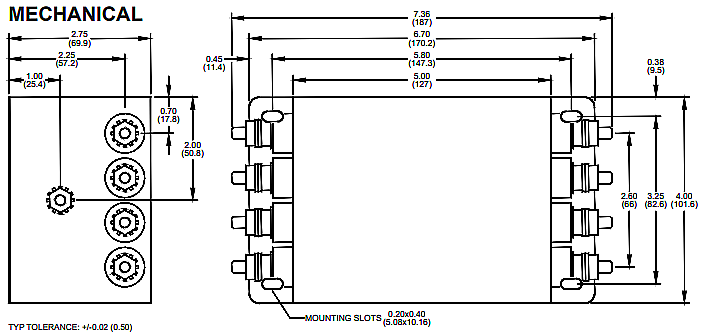

PART NUMBER / ORDERING
| MODEL | AMPS | WT TYP LBS (KG) | TERMINAL |
|---|---|---|---|
| PF405S-20-100 | 20 | 3.3 (1.5) | M5 |
| PF405S-30-100 | 30 | 3.3 (1.5) | M5 |
| PF405S-36-100 | 36 | 3.3 (1.5) | M5 |
| PF405S-45-100 | 45 | 3.3 (1.5) | M5 |
| PF405S-60-100 | 60 | 3.3 (1.5) | M5 |
| PF405S-70-100 | 70 | 3.3 (1.5) | M5 |
TYPICAL INSERTION LOSS (50/50ohm)
| FREQ MHZ) | 0.15 | 0.5 | 1.0 | 10 | 30 |
|---|---|---|---|---|---|
| CM, dB | 62 | 70 | 72 | 56 | 52 |
| DM, dB | 52 | 72 | 80 | 80 | 66 |
