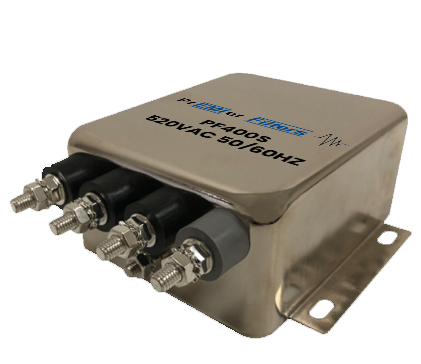

Product Specification
- Operating Freq : 50/60Hz
- Usable Freq : DC-400Hz
- Max. Operating Voltage : 520VAC
- Ambient Temp : -25 to 50C
- Climatic Category : 25/110/21
- Hipot Rating (L-G) : 3500VDC
- Designed to Meet UL1283/CSA22.2/EN90939 Standards :
PART NUMBER / ORDERING
| MODEL | AMPS | WT TYP LBS (KG) | TERMINAL |
|---|---|---|---|
| PF400S-6-100 | 6 | 2.6 (1.2) | M5 |
| PF400S-10-100 | 10 | 2.6 (1.2) | M5 |
| PF400S-20-100 | 20 | 2.6 (1.2) | M5 |
| PF400S-30-100 | 30 | 2.6 (1.2) | M5 |
| PF400S-40-100 | 40 | 2.6 (1.2) | M5 |
| PF400S-50-100 | 50 | 2.6 (1.2) | M5 |
TYPICAL INSERTION LOSS (50/50ohm)
| FREQ MHZ) | 0.15 | 0.5 | 1.0 | 10 | 30 |
|---|---|---|---|---|---|
| CM, dB | 68 | 72 | 75 | 60 | 52 |
| DM, dB | 54 | 72 | 75 | 75 | 60 |
